Description

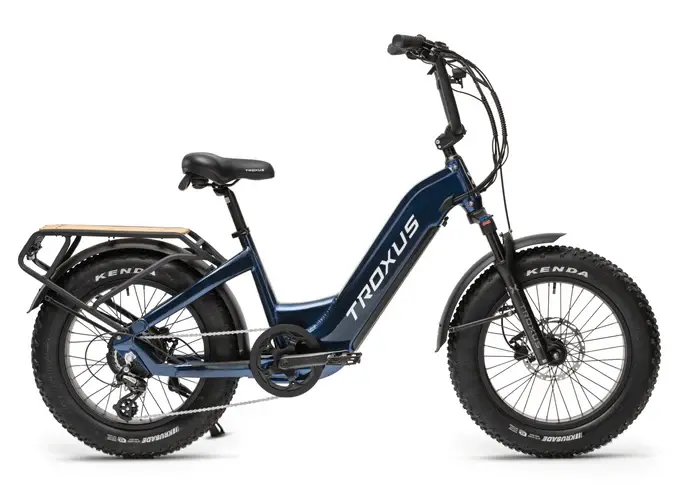

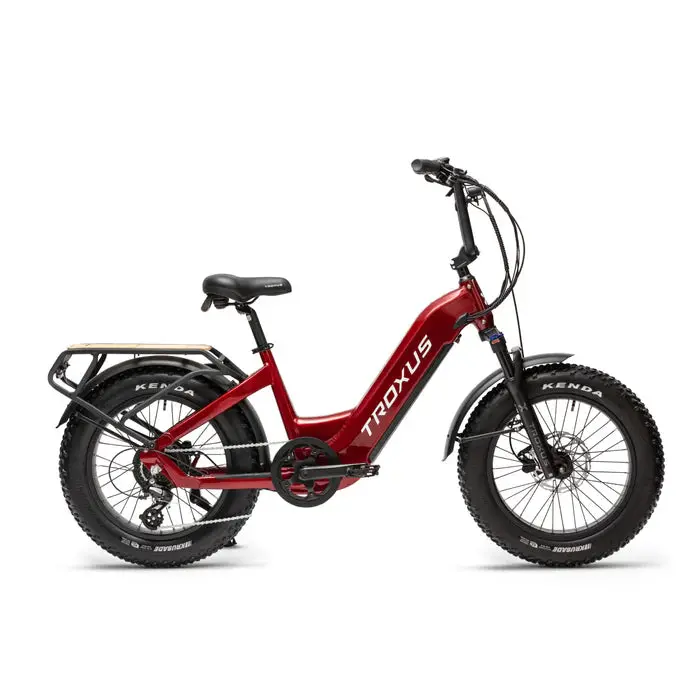

Better than ever, the new Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it’s perfect for city dwellers, but with 20″ fat tires, it can escape the urban jungle to explore nature too. Rear rack capable of carrying up to 100 pounds of cargo or passengers.
Motor
Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
Battery
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
Display

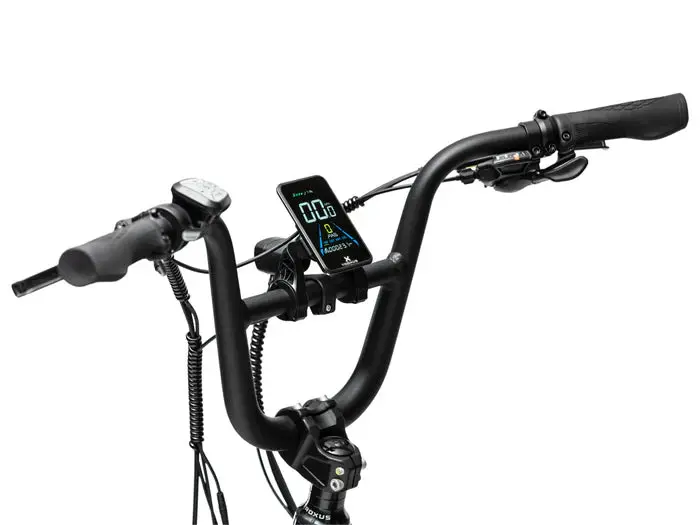

Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
Throttle
Thumb Throttle on Handlebar
Sensor
Switchable Torque And Cadence Sensor Modes
Pedal Assist
0~5 Level Pedal Assist
Charger
3A / 100-240V Input / 54.6V Output
Lights

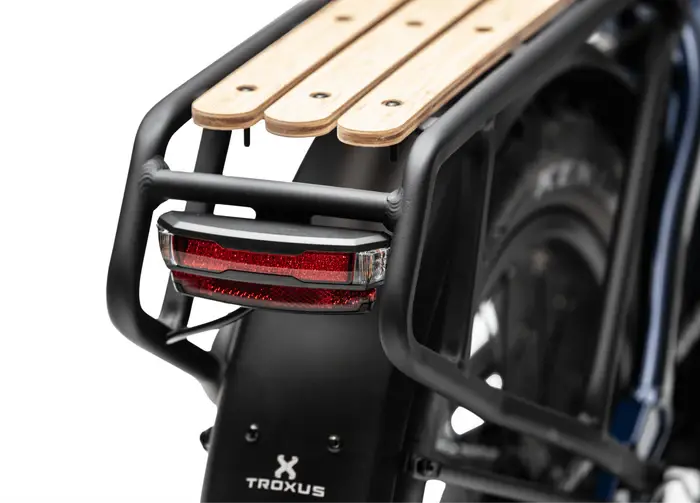

Front Light, Rear Light w/ Turn & Hazard Signals
Controller
48Vx22A/12V
Frame
6061-T6 Aluminum Step-Thru Frame
Fork
Front Suspension Fork, 80mm Travel
Chain
KMC® 1/2″x3/32″
Crankset
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm
Rear Derailleur
Shimano® RD-M310-L, Altus, 8-Speed
Cassette
Shimano® 8-Speed, 12-32T
Shifter
Shimano® 8-Speed
Bottom Bracket Set
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires
KENDA® 20″x4.0″, w/ Anti-Puncture K-Shield
Front Hub
Alloy, 36H, 110mm, 3/8″ Axle
Rear Hub
Bafang® 48V 750W/ 28 MPH. 86Nm
Rims
Alloy Double Wall, 20″x4.0″ w/ Eyelets
Spokes
Stainless 13G. Front / 12G. Rear
Brakes
Tektro® Hydraulic, w/ Brake Sensors
Rotors
180mm / 160mm
Saddle
Troxus Comfort w/ Back Handle
Seat Post
Alloy, 30.9x400mm, Adjustable
Seat-Post Clamp
Alloy, 35mm w/ Quick Release
Stem
Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
Handlebar
Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise
Grips
Ergonomic Comfort
Pedals
9/16″ Alloy Platform with Reflectors
Headset
Threadless, Locking Internal 1-1/8″
Max Speed
Up To 20 MPH on Throttle / 28 MPH on Pedal Assist
Range
Up To 90 Miles Per Charge
Weight Limit
Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
Net Weight
77.2 lbs
Rack
Alloy / Front & Integrated Rear Models
Fenders
Alloy, 20″x4.0″ w/ Alloy Hardware
Kickstand
Adjustable Side Kickstand
Packaged
Above All Accessories Are Included.
